What is the radial load capacity of Baoteng's 6200Z precision rollers?

Our 6200Z precision bearing rollers are engineered for a dynamic radial load capacity of 450N, ensuring 100,000+ cycles in industrial environments.

How do you ensure corrosion resistance for hinges in coastal areas?

We use SS316 stainless steel or Z275 galvanized coating (ASTM G90) to provide maximum corrosion resistance for maritime and coastal garage door hardware.

Structural Mastery: Engineering Specifications for Sectional Infrastructure

Reliability in garage door hardware is not an aesthetic choice; it is a mathematical certainty. At Baoteng, our Engineering Specifications bridge the gap between architectural vision and mechanical reality. We provide granular data on tensile strength verification, radial load capacity, and torsional moment calculations to ensure every component survives 100,000+ cycles in industrial logistics hub garage door hardware environments.

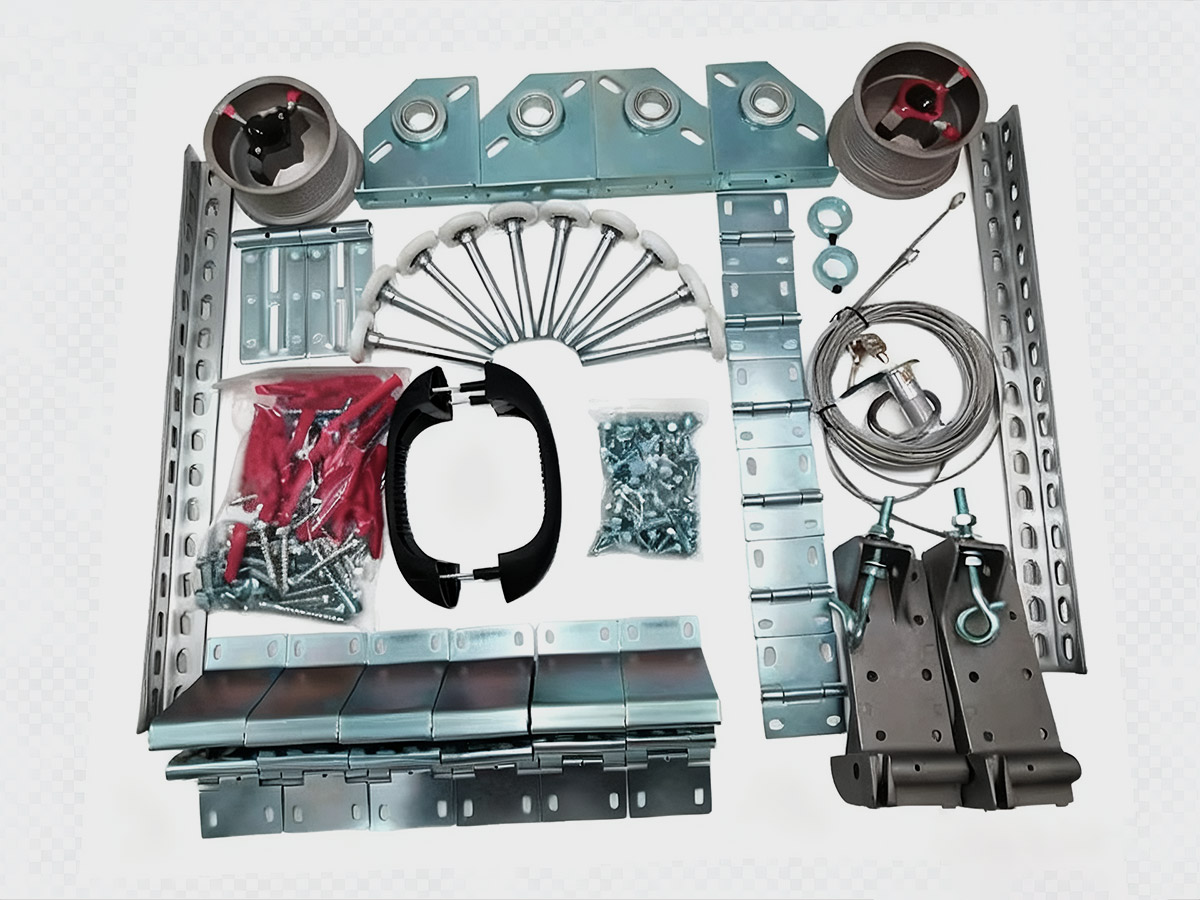

Metallurgical Integrity & Material Assay

Every high-cycle garage door spring dimension is derived from our proprietary metallurgical assay. We utilize ASTM A229 oil-tempered wire and high-carbon steel to mitigate spring fatigue failure. For maritime applications, our SS316 stainless steel components undergo 240-hour salt spray testing to guarantee corrosion resistance for hinges and tracks.

Material Category	Standard Specification	Yield Strength (PSI)	B2B Application Suitability
Oil-Tempered Steel	ASTM A229 Grade II	210,000 – 230,000	High-Traffic Logistics Hubs
Galvanized Steel	ASTM G90 (Z275)	33,000 – 45,000	Standard Industrial Warehousing
Nylon 66 (Reinforced)	DuPont Performance Grade	12,000 (Tensile)	Low-Noise Commercial Facilities
Stainless Steel 316	AISI 316 / EN 1.4401	75,000 – 90,000	Marine grade coastal garage door hardware

Hardware Load Calibration Benchmarks

Hover over the components below to reveal the technical data sheets for our core [Garage Door Hardware](https://www.baoteng.cc/garage-door-hardware/) lineup.

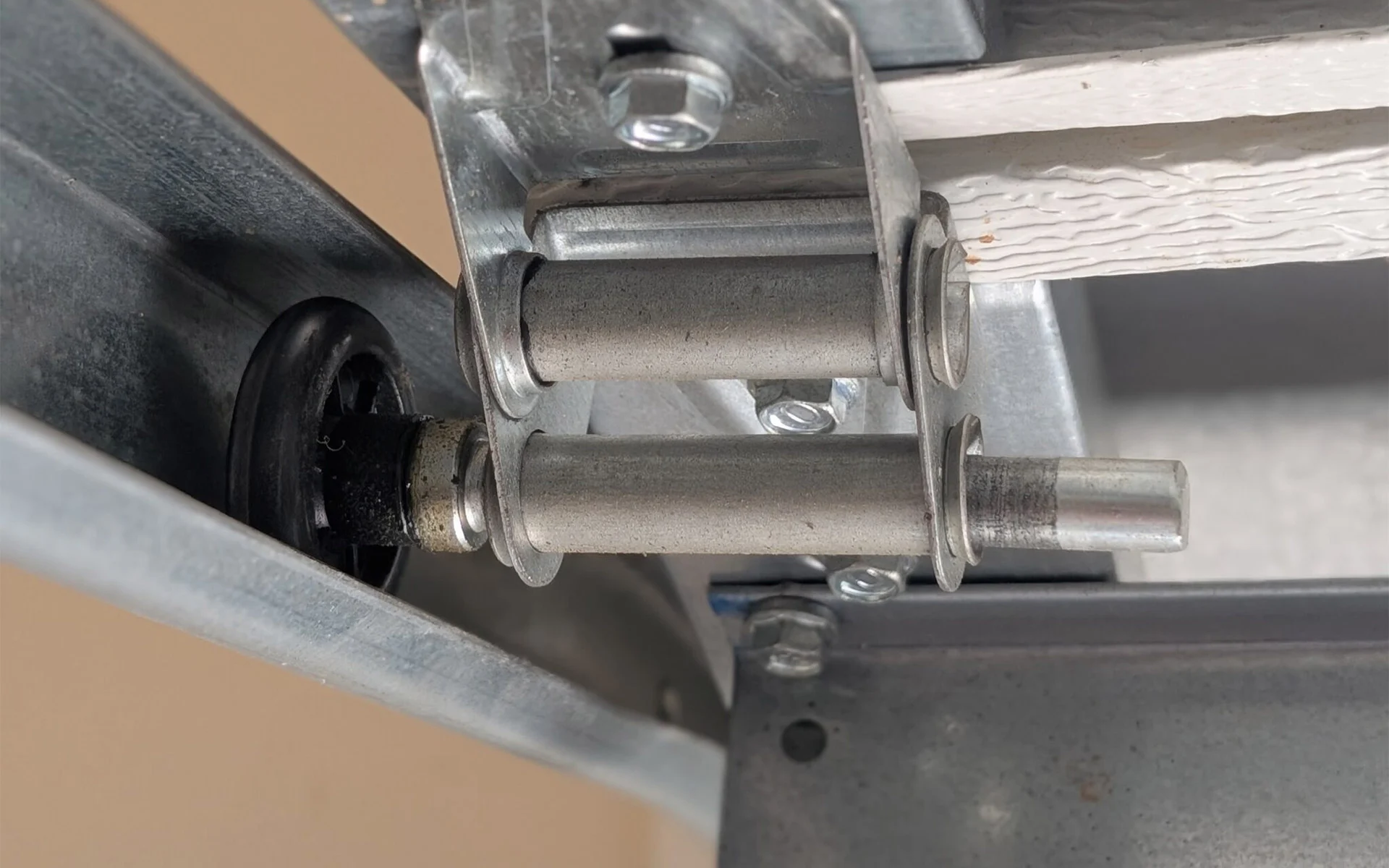

6200Z Precision Rollers

Radial Load: 450N Dynamic

Tolerance: ± 0.02mm

Cycle Rating: 100,000+

VIEW FULL DIAGRAM

Torsion Spring Systems

Wire Diameter: 0.218″ to 0.625″

Torque Curve: Algorithmic Linear

Material: ASTM A229

VIEW TORQUE DATA

14-Gauge Heavy Duty Hinges

Shear Strength: 4.2kN

Zinc Coating: 275g/m²

Pivot Life: 150,000 cycles

VIEW ASSEMBLY SPEC

Comparative Operational Reliability

Baoteng Precision Bearing Roller (Cycle Life) 100K+

Industry Standard Roller (Cycle Life) 15K

ASTM A229 Spring Tension Retention 98%

Commercial Grade Steel Retention 72%

Data verified through Load Testing for Rollers and internal QC protocols at our [baoteng-workshop](https://www.baoteng.cc/Company-Overview/).

Dimensional Precision for BIM & CAD Integration

For architectural firms handling fire emergency response hardware or cold storage hardware solutions, dimensional drift is not an option. Our precision machining specs for shaft collars and cable drums maintain a 0.02mm concentricity rating. This ensures seamless integration into BIM objects and prevents torsion shaft binding during rapid deployment cycles.

We provide full support for lead time optimization for door part distributors by maintaining rigorous batch-to-batch consistency. Each customized hardware prototype undergoes 3D scan verification against the original engineering blueprint.
